Annotations

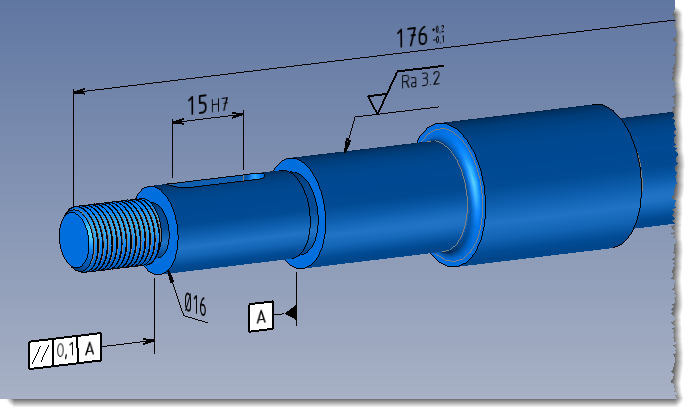

3D annotations are now shown at their actual size. Each annotation type—such as dimension, tolerance reference, geometric tolerance, or surface finish—uses a specific style. This improvement is necessary for export formats that support PMI.

The Screen size option allows you to revert to the behavior of previous versions.
