Hale Machining

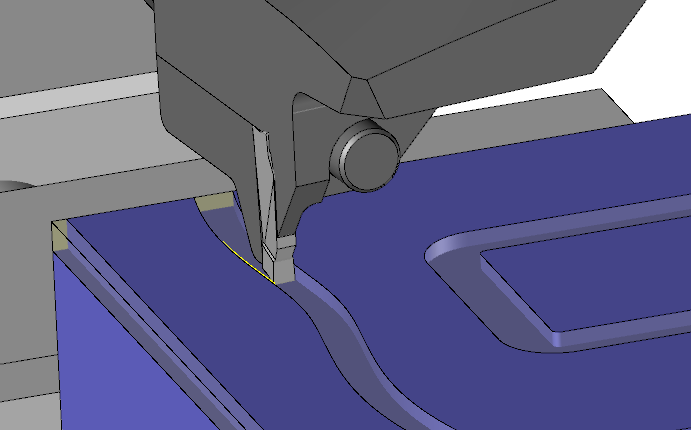

Hale machining is a machining process in which neither the tool nor the part rotates around a power axis. The tool orientation is continuous, perpendicular to the machined profile.

The Hale Machining type has been added to the following operations:
  • Side Milling
  • Finishing (Raster passes / Morphing / Constant step-over modes)
  • 3D Contouring

It can be accessed from the Multi Axis dialog box by selecting 3X + Hale Machining in the Multi axis type field.
