Table code parameter





Links / Videos :





This command allows to select family code according to the value of a source parameter.



Creation stages / Use:



Click the icon or select the Construction> Parameters > Other Parameters > Table Code Parameter... command from the drop-down menu.



  1. Enter the name of the parameter.

  2. Choose the source type.

  3. Enter the source value, an expression, or click on an edge.

  4. Fill in the table.

  5. Select the interpolation type (linear interpolation will not be available for this parameter).







Family document to use must be opened in order to be selectable in this list.

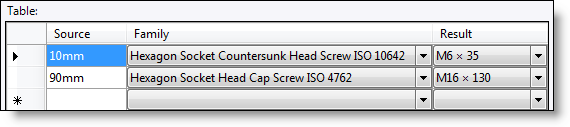

Example: A part is included into an assembly, height of this part could be 10mm or 90mm. According to this height, we want to use a countersunk head screw M6 x 35 or a head cap screw M16 x 130 to fix this part.

A table code parameter must be created with a length type source and as value an edge of the part.
