Angle weld

This command creates a weld angle in an assembly.

Creation stages / Use:

Click the icon or select Modeling > Angle Weld... command from the drop-down menu.

To be able to use the weld angles, it is essential that the libraries required for the project be referenced. The referencing is done by using the Add reference contextual command from the References icon of the project tree.

Select the type of weld angle seam in the drop down list.
Enter the height of the weld seam.

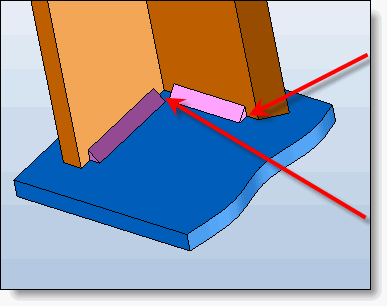

Select the first batch of faces. All the faces selected must be on the same side of the weld.
Select the second batch of faces. All the faces selected must be on the same side of the weld
Checking Limit by neighboring faces to limit the weld extremities by the neighboring faces otherwise
Enter the value of the end withdrawal.
Enter the joint withdrawal value.

The limit by neighboring faces only supports planar faces.

To accumulate the limitation by neighboring faces on one side and an end withdrawal on the other, the weld must be modified locally.

End withdrawal

Joint withdrawal

Angle weld

Options:

Material: To select a specific material for this weld, a material document needs to be opened. Then it will be available in the drop-down list.

Made on side: This information will be automatically indicated in the draft by using the Weld symbol command and by checking the Projected symbol welding option.

Modifications / Additional information:

To modify the type of weld, the faces, the withdrawals, use the Edit contextual command .
