Analyze Projected Area







Links / Videos :





This command allows to compute and visualize the area of the projected shape silhouette along a given direction.



Creation stages / Use:



Click the icon or select the Analyze > Analyze Projected Area... command from the drop-down menu.



  1. Select the shape to analyze.

  2. Select the projection direction.

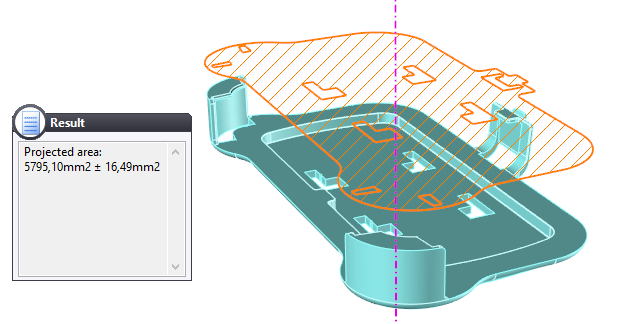

The projected area is displayed in the graphic area, its value is displayed in the Result dialog bar.







The computed tolerance cannot be modified.





Modifications / Additional information:



The unit can be modified thanks to the General > Units topic of the document Options tree.
