Symmetric pattern
|
|
Symmetric pattern |
This command allows to define a symmetrical pattern usable by a sketch repetition.
Creation stages / Use:
Select the type of symmetry. (Axis, point, double axes).
Select the geometric entity.( Axis or 2 axes, point).
Validate by clicking
.
|
|
|
|

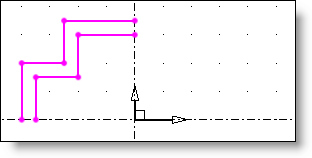

Profiles to repeat |

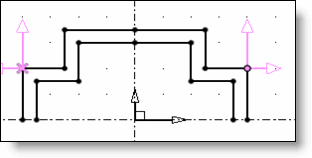

Repeated profiles by an axial symmetry |
|
|
|
|
|
|
|

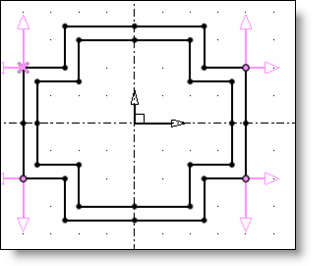

Repeated profiles by 2 axes symmetry |

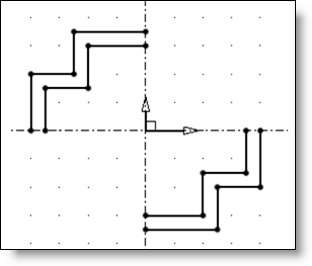

Repeated profiles by a point symmetry |
Available Options:
The Display parameters section allows to define the position of the pattern visualization.
Select the starting point.
|
|
It is also possible to select a 3d pattern in following cases: If the Projection mode is activated, TopSolid checks if projected transformations are valid. If the Projection mode is deactivated, the 3d pattern must be "plane" (its displacement stays in a same plane parallel to the sketch plane). |
Modifications:
It is possible to modify the repetition by editing it from the contextual menu.
