Edge distribution





Links/Videos:





This command allows you to specify a number of nodes to distribute on an edge in order to mesh a part.



Creation stages / Use:



Click the icon or select the Mesh > Mesh distribution... command from the drop-down menu.



  1. Select the edges on which to specify a specific number of nodes.

  2. Provide the number of nodes to split on each edge.





This function can be useful for obtaining a thinner mesh on edges where a more exact result is desired.

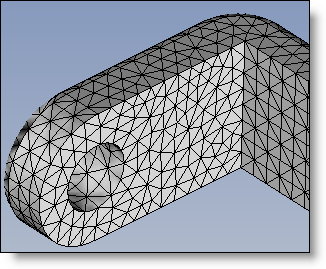

Initial Meshing

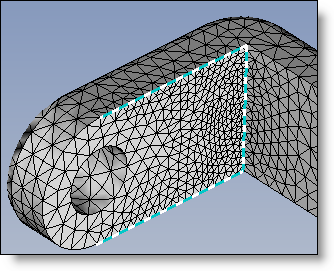

Distribution of 30 nodes

on each of the selected edges
