Solver





Links / Videos :



This command allows you to start the solving process of a Plastic flow analysis, according to the different information previously set.



Creation Stages / Use:



Click the icon   or choose the command Analysis > Solver...from the drop-down menu.



  1. The calculation starts automatically.

  2. Asking for the solver creates a new Result Document that contains all the Results display.

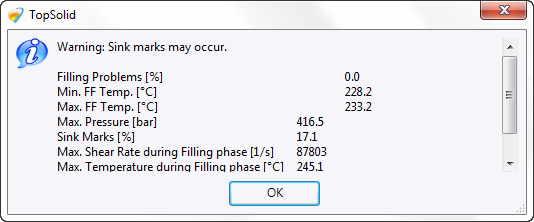

  3. At the end of the calculation, a simulation report is proposed. It compiles the computation information:







During the calculation, it is not allowed to modify the part visualization (zoom, rotation).

During the calculation, the software is displaying the Snapshot filling - Pressure result.
