Limit Angle

It is possible to give a tilt angle A° to the machining limitation.

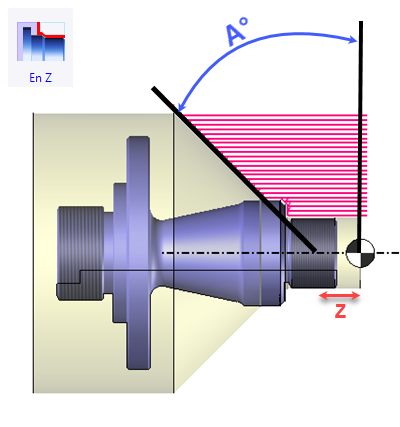

In the case of a Z limitation the tilt is defined at a distance Z from the WCS origin.

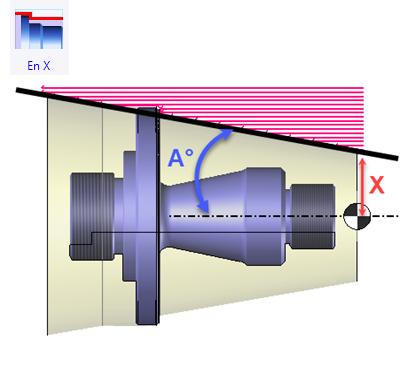

In the case of a X limitation the tilt is defined at a distance X from the WCS origin.

To easily represent this angle and its impact on the machining area. It is possible with the button (located on the right in the graphical area toolbar) to represent this angle. A red line will be displayed with the tool visualization.
