Fillet Radius

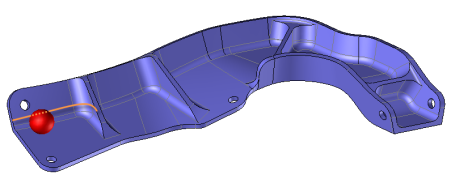

For "Face and Bottom" roll milling with a supporting surface, the guide curve is automatically calculated by a sphere rolling along the surfaces to mill of the supporting face.

This field allows you to specify the radius of the sphere.

This sphere's radius must be equal to the blend radius between the surfaces to mill and the supporting surfaces.
