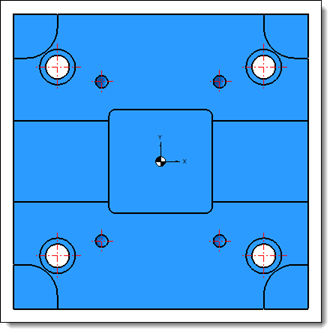

This contextual command allows to define the view origin representation displayed when creating a drillings table.

Creation stages / Use:

Select the Edit... contextual command from the origin frame of the existing view.

Available options:

• Style: This option allows you to choose a view origin style or to create a new origin view style.

• Format: This dialog allows you to define the text height, the color and the layer of the symbol.

• Geometry: This dialog allows you to define the axes length, the symbol type and the origin extension (when the axes are shifted).

• Axes: This dialog allows you to define the visibility, the centering and the offset of the axes.

• Extremity: This dialog allows you to choose the symbol, the line style, the color and the dimensions of the symbol extremities.
