Filter unsafe items
|
|
Filter unsafe items |
This mode allows to filter automatic detection of faces whose hooking could not be assured throughout the part life cycle.
Creation stages / Use:
Click the
icon or select the Visualization > Picking filters > Filter Unsafe Items command from the drop-down menu.
|
|
This filter can be cumulated with the Faces filter, Edges filter and with one of these 3: Filter by color, Filter by properties, Filter by entities. |
Modifications / Additional information:
Example of use: When a geometry is split into two, with a groove operation, an operation may not hook to one of the resulting faces if the groove is changed or deleted, which may lead to an invalid operation.
Activating this filter we make sure to not use these faces.
|
|
|

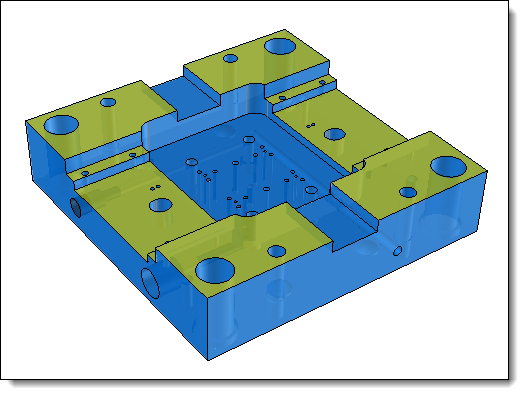

In the above example, all the yellow faces cannot be selected when the Filter Unsafe Items mode is enabled |
