Straightening lateral faces





Links/Videos:



This command straightens the lateral faces inclined perpendicularly to the faces of the sheet.



Creation stages / Use:



Click the icon or select Sheet Metal > Straightening of Lateral Faces... from the drop-down menu, then select the edges of the faces to straighten.



Result:

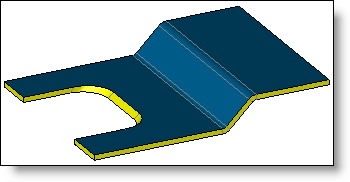

Sheet metal before straightening

Sheet metal after straightening
