The aim is to realize a corner relief.

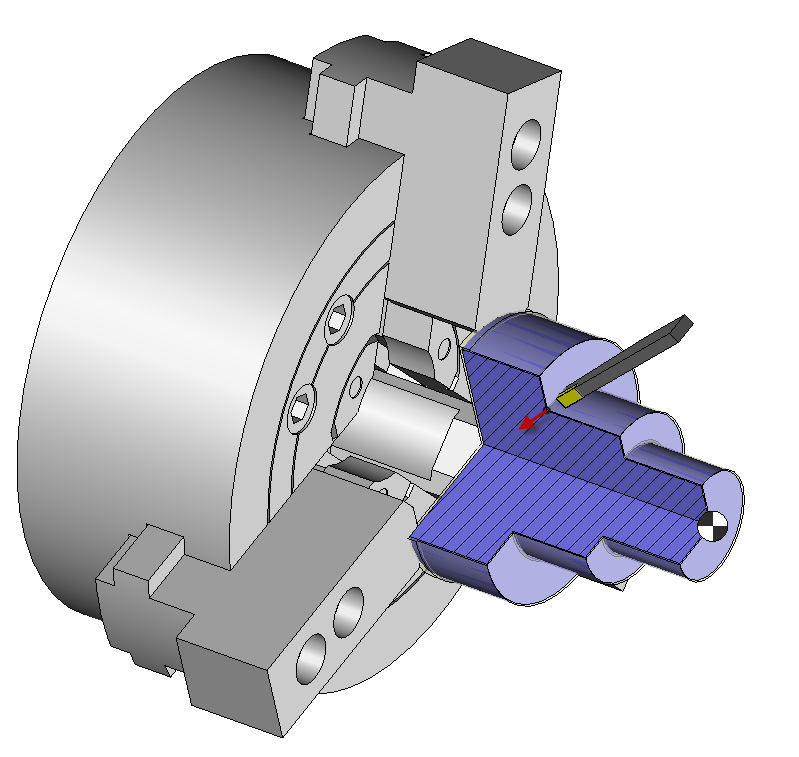

It will then be possible to plunge with a grooving tool (of any shape) following the direction given by the inclinaison of the tool in order to clear a shaft shoulder for example.

Operation

There are different ways to select the geometry:

• A point in the XZ turning plane.

• A circular edge of the part.

• A plane

We then just have to give the plunge distance which means the manchining depth and the approach distance (approach distance in feed rate before the geometry to machine).

Plunge distance	Lead in distance

Visibility management when editing the operation:  click on the icons below
