Before second intersection

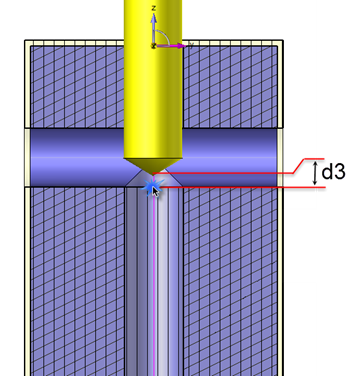

When this option is activated TopSolid creates a point before the second intersection at a distance "d3" from where it is possible to give a specific feed rate.

If the modal mode is unchecked, the specific feed rate is modified on the distance "d3".   If the modal mode is checked, the specific feed rate is modified from the point before the second intersection until the next point where will be defined another feed rate modification.

The specific feed rate is given in percent of the working feed rate and will be keep until the next point.

It is also possible to give a wait on that point.

It is also possible to change the spindle rate from this point.

Simply check the Change rotation speed before the second point option and assign a custom speed.

The speed can be expressed directly in revolutions per minute or with a percentage of the defined rotation speed in the cutting conditions of the operation.

If the modal mode is unchecked the custom rotation speed is modified on this distance "d3".   Caution if the modal mode is checked, the custom feed rate is modified from the point before the second intersection until the next point where will be defined another feed rate modification.
