Planar faces machining

End

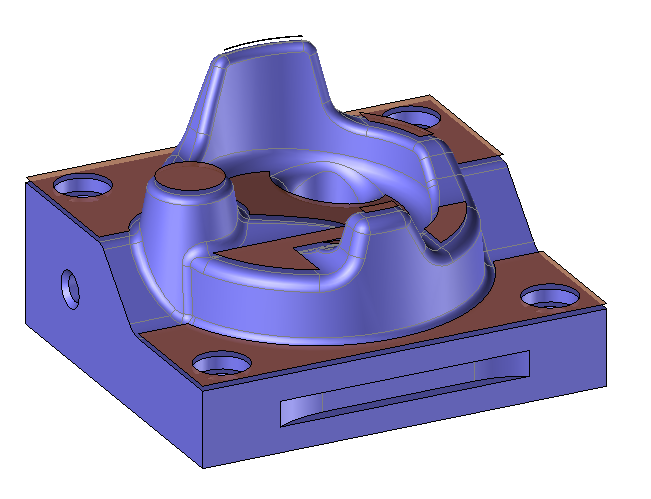

Automatically machine all the planar faces of a complex shaped part.

Operation

Usable Tools

By default we can make the operation by using one of this tool type:

Radiused Mill...
Flat bottom mill (slot mill and side mill)
Ball nose mill

End milling strategy

Each planar area defines a level which is then machine using one of the three different end milling strategy.

It is possible to remove some planar faces by clicking on the part at a particular altitude with the option "Manual selection of altitudes" of the menu .

Operation

From the 2D/3D menu or using the mouse (by selecting or not selecting a face with the right mouse button), select the "Other / Planar Faces Machining..." menu.

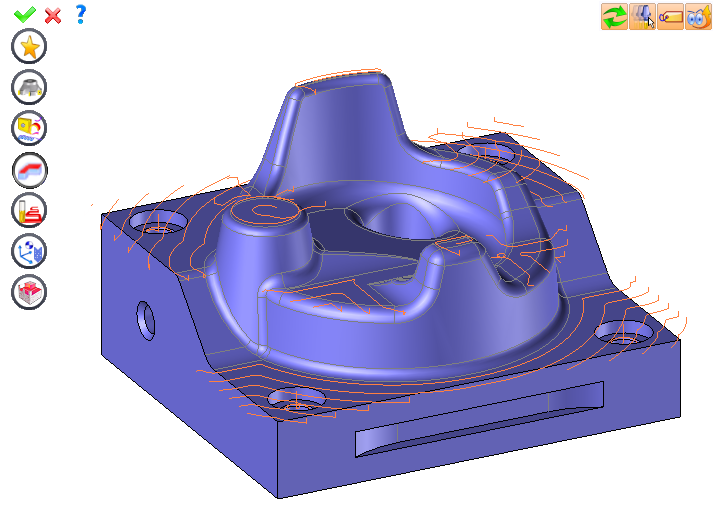

A toolbar appears on the left of the screen, along with a label in the graphic area.

You can then modify values by

By selecting the value to modify in the label. The label is the table shown in the image in the top right corner. All label values are fields available from one of the icons in the left section. These values are placed on the label for quicker access.

By selecting the values in the graphic area or by pulling the arrows. As with the values of the labels, these fields are present in one of the left section icons. These values are placed in the graphic area for quicker access.

By opening one of the left section icons.

	Select Favorite Instead of modifying n values, this option allows you to restore (or save) values that have already been entered.
	Select the tool to use By default, if the previous operation tool can be used, it is reused for this operation (the name of the tool appears in the graphic area next to ) If the previous tool is not suitable or if this is the first operation, you must select a tool to validate the operation ()
	Define Cutting Conditions for Operation Use this icon to modify the cutting conditions of the current operation.
	Define or Add Geometries to Machine Use this icon to select (or remove) machinable geometries. This geometry is automatically added, by first selecting the geometry and right-clicking "Planar faces machining". You do not have to access the icon to do this. Define Milling Boundaries You can also apply trims (XYZ or contour) to the current operation.
	Define all milling settings Each milling has specific settings. Use this icon to access all settings (such as stocks to leave, altitudes, plunge modes, milling modes, etc.)
	Define ISO File Settings Use this icon to define which comment to use for the ISO code or to decide which inclined plane matrices to use.
	Define colinear axis This icon is available only if the current machine has colinear axis.With this icon it will then be possible to choose the axis drives by the operation.We also can choose the Z value of the fix axis.
	Define Operation Properties Use this icon to define whether you would like to update the stock or calculate the result later.
	Confirm To confirm the current operation, pressing this icon to right-click outside the window and use the "OK" menu
	Cancel If you wish to cancel the operation, click this icon.
	Preview Display or hide the machining area. When this is hidden, this area is not calculated, and response times improve.
	Show the tool on mouse cursor Allow to show the tool in the graphical area at the top of the mouse cursor.
	Show Label Allows you to display or hide the graphic area label.
	Editing Update Each time a setting is changed (such as the axial depth), all calculations for updating the hatching area and the trajectory are triggered. The setting change may take a few moments. In several cases, settings must be modified before updating the calculations. For this, press this icon. In the case, the hatching area and trajectory (for example) are not recalculated before pressing this icon again.

Label

Click the different areas in the image below

Computing Tolerance	0.1mm
Time	00:00:10:30
Stock to leave on floor	1mm
Stock to leave on side	1mm
Pass Depth	5mm
End Milling Strategy

Visibility management when editing the operation: click on the icons below

Machine visibility

WCS visibility

Tool visibility

Collision visibility

Stock and finish visibility

Tool paths visibility

Instead of entering all of the settings for each of these icons, you can also copy the settings that have already been entered into an operation by dragging this operation (with the left mouse button) from the operations list to the icon where you wish to copy.
