Cycle type

In a 3D contouring with multi-passes it is possible to select between three cycle types for the machining strategy:

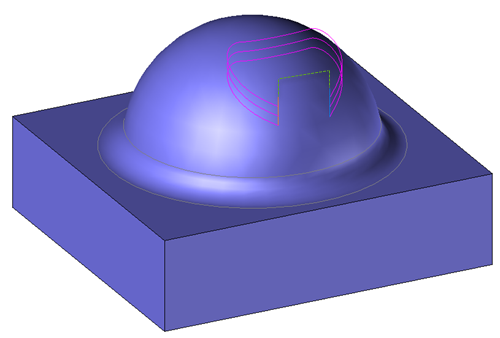

One way

At the end of each Z pass, a retract in rapid until the safe plane is done

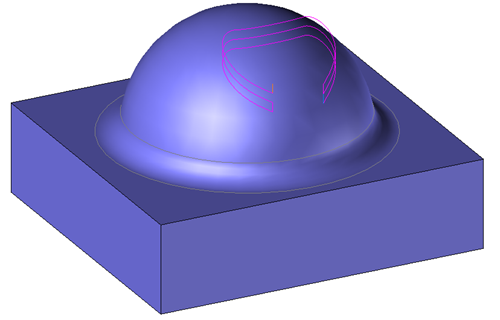

Zig Zag Cycle

At the end of each Z pass, a plunge in machining feed rate is done directly on the next Z passe.

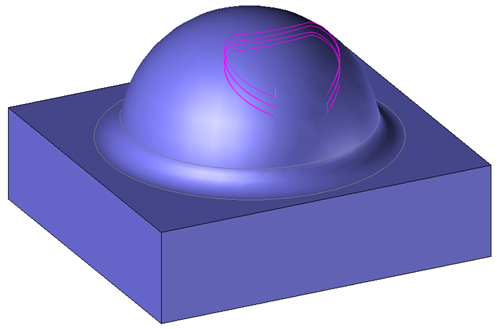

Zig Zag Slope Cycle

At the end of each Z pass, a retract in slope in machining feed rate is done to reach the begining of the next Z pass.
