Option to use in a roughing where we do not want to machine all the part BUT mostly take into acount a stock which is not a cube (essentially for Z rapids).In this case the machining area and the altitudes are not calculated with the part original stock but with this local stock.
Option to use in a roughing where we do not want to machine all the part BUT mostly take into acount a stock which is not a cube (essentially for Z rapids).
In both examples below the yellow stock represents the original stock and the green stock the local stock for an operation.
|
2D Machining |
|
|

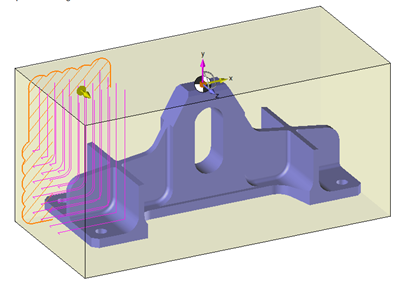

End miling with original stock |

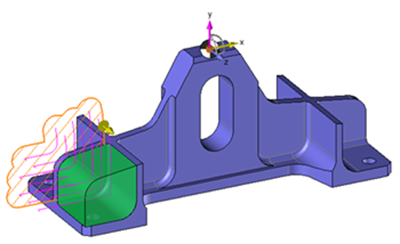

End miling with local stock |
|
|
 |
|---|---|
|
3D Machining |
|
|
In the example below the roughing has been calculated on the green local stock. |
|
|

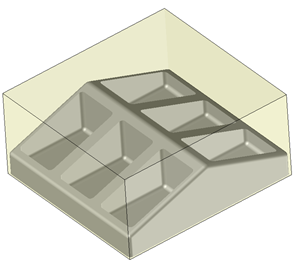

Original stock |

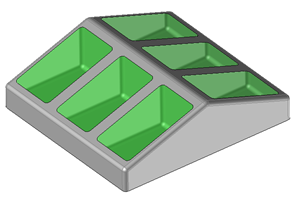

Local stock for the roughing |
|
|
|
|

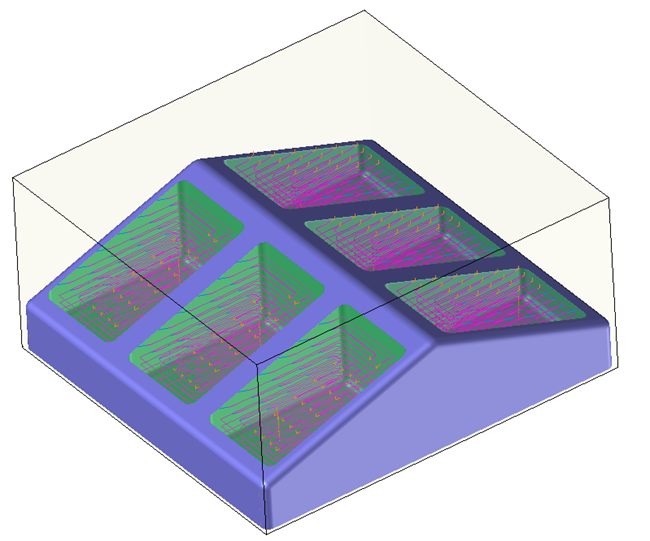

Result |
|
|
The tool paths are calculated with the green stock. |
|
|

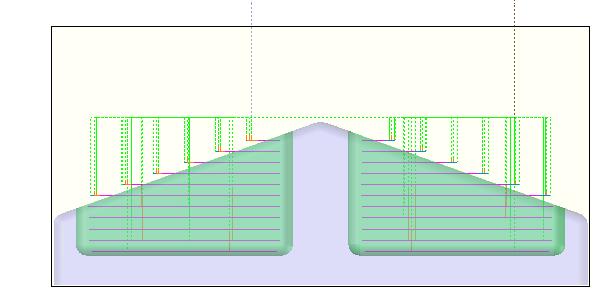

The rapid tool paths are calculated with the green stock. |
|
|
TURNING |
|
|

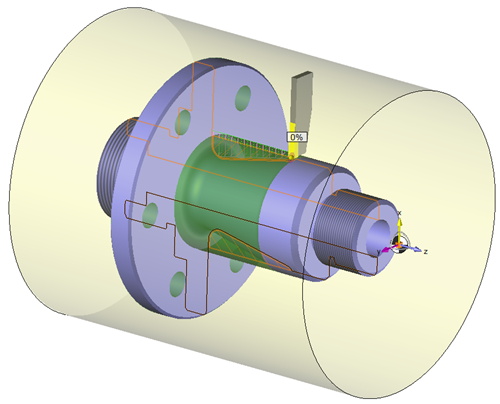

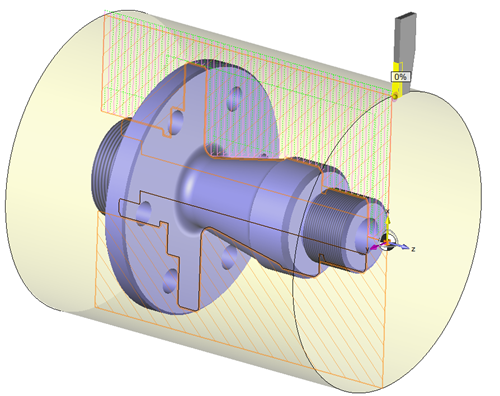

In the example below the roughing has been calculated with the initial stock in yellow (on the left) and on the green local stock on the right) |
|
|
|
|
If the operation asks to update the stock it is the part original stock which will be updated.In the last example we will have a stupid result as the rapid movements does not update the stock.
