Lead out type on open contour

This tab allows to define the lead out type for an open contour

None



No retract is set for this path.

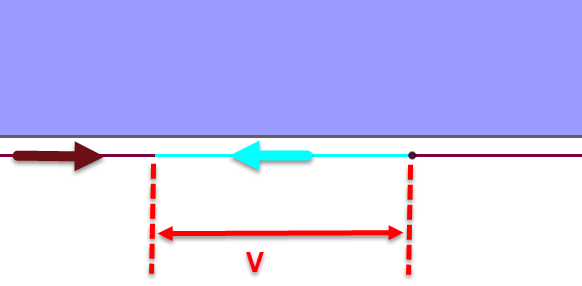

Retract



The lead in is done backwards from the starting point of the path, at a distance overlapping the tool path, and in the opposite direction to the cutting direction.La recovering length V is set by the user.
