The method used to break the angle in lead in / out is always chamfering.
- It is necessary to limit the tool path for the breaking edge to work on the open part
- With starting and ending points.
- Or use the truncated mode in the label
.
|
The method used to break the angle in lead in / out is always chamfering.
- It is necessary to limit the tool path for the breaking edge to work on the open part
- With starting and ending points. - Or use the truncated mode in the label
|
 |
In that case the tool goes so inside the finish part (unless using the loop method)
|
None

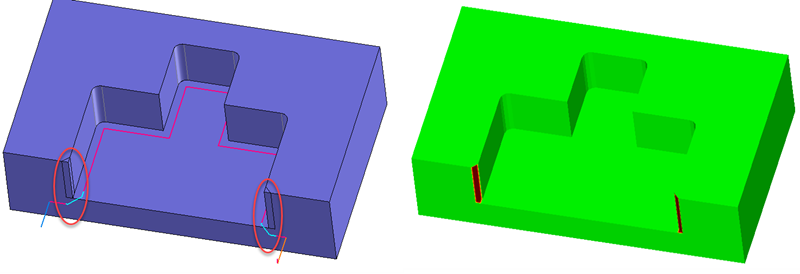

Do not perform breaking edge at the lead in or lead out of a open contouring. |
|
Angular

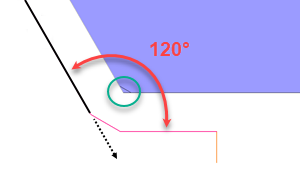

A segment is added to the tool path with the indicated angle to calculate the breaking edge. In the example below TopSolid calculates a chamfer breaking edge with an angle of 120°.
|
|
Direction A segment is added to the tool path along a direction to caculate the breaking edge. In the example below TopSolid uses a chamfer breaking edge following the X+ direction.  |
